High-performance laser tube cutting machine with solid-state laser and RapidCut technology for maximum productivity.
Type
Laser Tube Cutting Machine
Laser Type
Fiber
Work Area
Customizable (up to 10 in. diameter and 0.4 in. wall thickness)
Max Power
Up to 6 kW

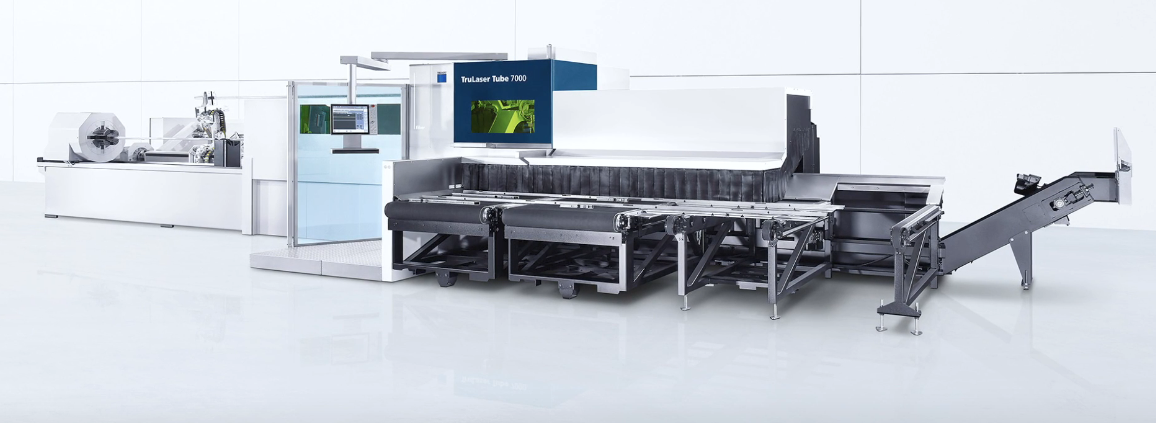

The TruLaser Tube 7000 fiber is designed to offer maximum productivity with solid-state laser technology, delivering high-speed, precise tube cutting for large and complex tube profiles. With the ability to process tubes up to 10 inches in diameter and wall thicknesses of up to 0.4 inches, this machine offers unmatched cutting performance and flexibility. The integration of RapidCut technology ensures high feed rates, making it particularly effective in cutting thinner materials. Additionally, the open machine concept offers excellent accessibility, making the TruLaser Tube 7000 fiber an ideal solution for both small-batch and high-volume production.
Maximum Tube Diameter
10 in.
Maximum Tube Wall Thickness
0.4 in. (mild steel)
Positioning Speed
Up to 150 m/min
Positioning Accuracy
±0.05 mm
Control System
TruTops Tube
Machine Dimensions (L x W x H)
Approx. 10.0 x 4.0 x 3.0 m
The TruLaser Tube 7000 fiber can handle tubes up to 10 inches in diameter, making it suitable for a wide range of tube sizes and applications.
The TruLaser Tube 7000 fiber utilizes RapidCut technology, which optimizes the feed rates of the solid-state laser, ensuring fast and efficient cutting, even on smaller contours and thinner materials.
Yes, the TruLaser Tube 7000 fiber is equipped with a bevel cutting option, allowing for high-quality bevel cuts up to 45°, making it ideal for applications that require angled tube edges.
The TruLaser Tube 7000 fiber delivers maximum productivity through the integration of RapidCut technology, which allows for high feed rates even on smaller contours. This results in significantly reduced processing times, particularly for thinner materials, ensuring a competitive advantage in production efficiency.
With its open machine concept, the TruLaser Tube 7000 fiber provides excellent accessibility, making it easy to load and unload tubes efficiently. This design improves ergonomics, ensuring that even small lot sizes or individual tubes can be processed quickly and safely.
The TruLaser Tube 7000 fiber offers high-quality bevel cutting capabilities up to 45°, ensuring that even complex tube geometries can be cut with precision. Combined with solid-state laser technology, the machine delivers consistent, high-quality cutting results across various materials.
The TruLaser Tube 7000 fiber integrates advanced automation features, including smart profile detection and a self-centering collet chuck, ensuring high precision and minimal setup time. The fully automated machine settings also reduce non-productive time, allowing for smooth, uninterrupted production cycles.
